SPEDIX F4

Description​

One of the main considerations while designing the SPEDIX F4 was to provide users the maximum amount of UARTs, as well as motor outputs, while retaining maximum efficiency, a careful choice of pinmap allowed to run 6-8 DSHOT motors off just 2 timers, while breaking out all the 6 UARTs that the STM32F405 provides. Timer design favors running multirotor and fixed wing alike. Plug & play connectivity to SPEDIX and AIKON 4in1 ESCs,

MCU, Sensors and Features​

Hardware​

  • MCU: STM32F405
  • IMU: ICM-20602 or MPU-6000
  • 6 DSHOT motors outputs, 8 by remapping UART6 as M7 & 8, using just 2 timers
  • BMP280 SPI
  • 6 hardware UARTs, UART5 with a controllable inverter for SBUS, USART1 with bidirectional inverter for FPORT/SPORT
  • Onboard regulator supports up to 6S
  • Dataflash blackbox
  • External I2C port
  • JST-SH 10 pin 4in1 ESC plug

Designers​

Kyle Lee (SPEDIX) Andrey Mironov (@DieHertz)

Maintainers​

Andrey Mironov (@DieHertz)

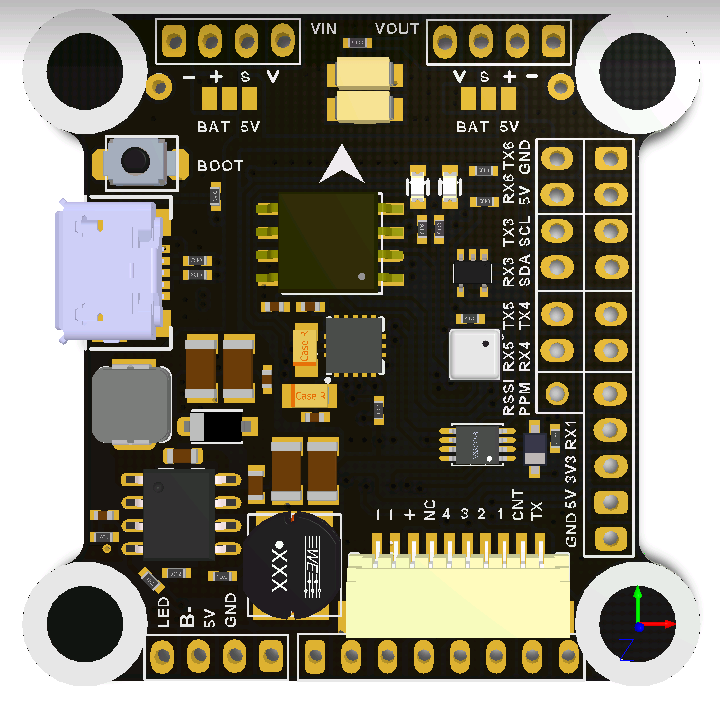

SPEDIX F4 top
