Elin F722

Hardware Features

  • MCU
    • STM32F722
  • IMU
    • ICM-20602
  • Motor Outputs
    • 4 outputs
  • OSD
  • VCP
  • Hardware UARTS :
    • UART1 - Serial RX,
    • UART3 - Inverted Smart Port,
    • UART4 - General use
    • UART6 - General use
    • Soft Serial 1 - Smart Port
    • Soft Serial 2 - ESC Telemetry
  • Black box
    • SPI 16MB
  • LED Strip
  • Integrated Voltage Regulator
    • 5V , 3A
  • Include Load Switch (VTX Real Pit Mode)
    • -30V , -30A (VTX or LED On / Off)
  • Include Low Pass LC filter
  • Buttons
    • Boot

Pinouts

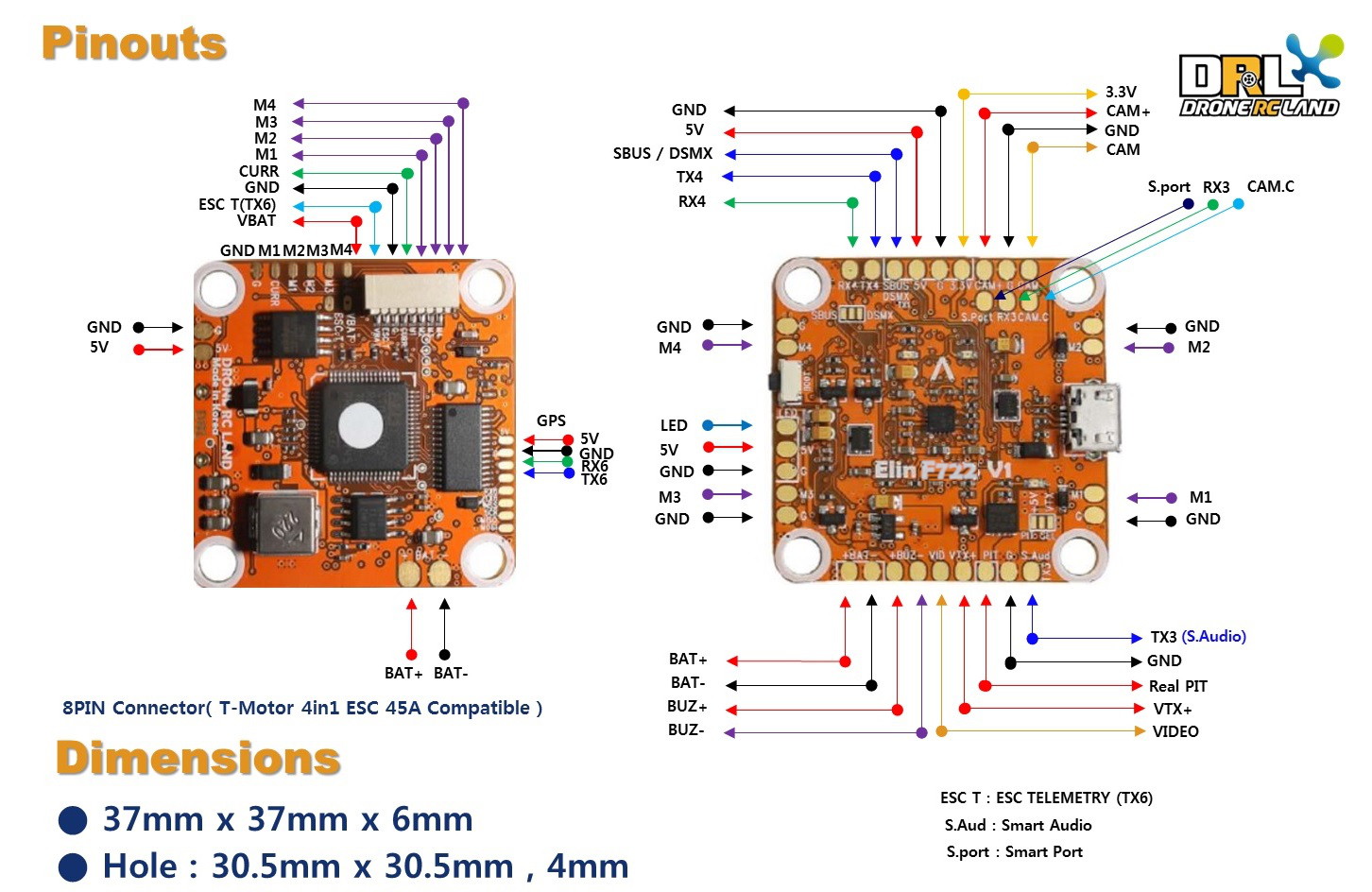

Elin F722 Pinout
