Elin F405

Hardware Features

• MCU
  • STM32F405
• IMU
  • ICM-20602
• Motor Outputs
  • 4 outputs
• OSD
• VCP
• Hardware UARTS :
  • UART1 - Serial RX,
  • UART3 - Inverted Smart Port,
  • UART4 - General use
  • UART6 - General use
  • Soft Serial 1 - Smart Port
  • Soft Serial 2 - ESC Telemetry
• Black box
  • SPI 16MB
• LED Strip
• Integrated Voltage Regulator
  • 5V , 3A
• Include Load Switch (VTX Real Pit Mode)
  • -30V , -30A (VTX or LED On / Off)
• Include Low Pass LC filter
• Buttons
  • Boot

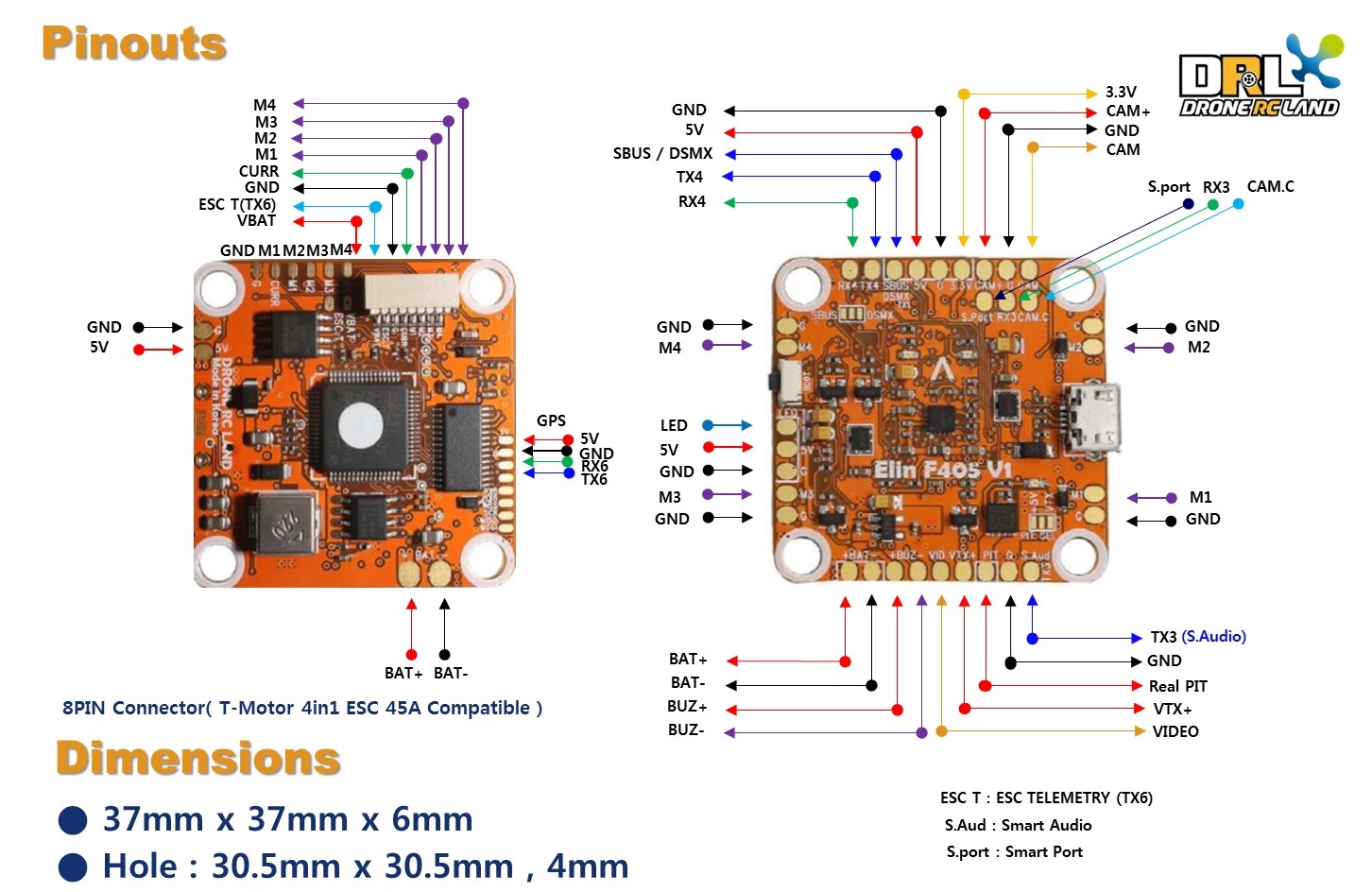

Pinouts
