Hardware debugging

The code can be compiled with debugging information, you can then upload a debug version to a board via a JLink/St-Link debug adapter and step through the code in your IDE.

More information about the necessary hardware and setting up the eclipse IDE can be found here

A guide for visual studio can be found here: http://visualgdb.com/tutorials/arm/st-link/

This video is also helpful in understanding the process: https://www.youtube.com/watch?v=kjvqySyNw20

Hardware​

Various debugging hardware solutions exist, the Segger J-Link clones are cheap and are known to work on Windows with both the Naze and Olimexino platforms.

Segger make excellent debuggers and debug software.

The Segger J-Link GDB server can be obtained from here.

http://www.segger.com/jlink-software.html

Segger J-Link EDU

https://www.segger.com/j-link-edu.html

http://www.hotmcu.com/usbminijtag-jlink-jtagswd-debuggeremula%E2%80%8Btor-p-29.html?cPath=3_25&zenid=fdefvpnod186umrhsek225dc10

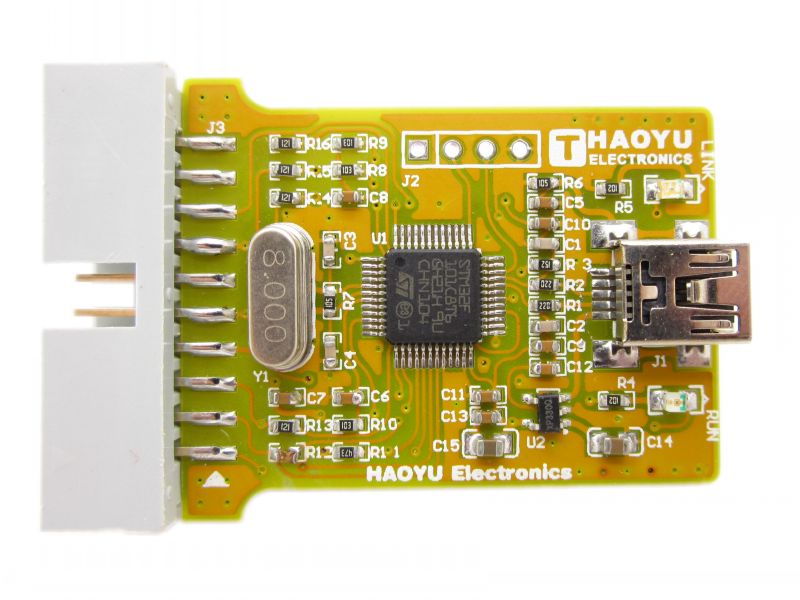

THAOYU USB-MiniJTAG

ARM-JTAG-20-10 adapter​

https://www.olimex.com/Products/ARM/JTAG/ARM-JTAG-20-10/ http://uk.farnell.com/jsp/search/productdetail.jsp?sku=2144328

OLIMEX ARM JTAG ADAPTER

CJMCU-STM32 Jlink ARM Programmer Front

CJMCU-STM32 Jlink ARM Programmer Back

http://www.goodluckbuy.com/cjmcu-stm32-singlechip-development-board-jlink-downloader-jlink-arm-programmer.html

STLink V2 devices can be used too, via OpenOCD.

CEPark STLink V2

http://www.goodluckbuy.com/cepark-stlink-st-link-v2-emulator-programmer-stm8-stm32-downloader.html

Compilation options​

use DEBUG=GDB make argument.

You may find that if you compile all the files with debug information on that the program is too big to fit on the target device. If this happens you have some options:

  • Compile all files without debug information (make clean, make ...), then re-save or touch the files you want to be able to step though and then run make DEBUG=GDB. This will then re-compile the files you're interested in debugging with debugging symbols and you will get a smaller binary file which should then fit on the device.
  • You could use a development board such as an PORT103R, development boards often have more flash rom.

OSX​

Install OpenOCD via Brew​

ruby -e "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/master/install)"

brew install openocd

GDB debug server​

Windows​

Run the Launch the J-Link GDB Server program and configure using UI.

OpenOCD​

Windows​

STM32F103 targets

"C:\Program Files (x86)\UTILS\openocd-0.8.0\bin-x64\openocd-x64-0.8.0.exe" -f interface/stlink-v2.cfg -f target/stm32f1x_stlink.cfg

STM32F30x targets

"C:\Program Files (x86)\UTILS\openocd-0.8.0\bin-x64\openocd-x64-0.8.0.exe" -f scripts\board\stm32f3discovery.cfg
OSX/Linux​

STM32F30x targets

	openocd -f /usr/share/openocd/scripts/board/stm32vldiscovery.cfg
