Hardware Debugging In Eclipse

Build a binary with debugging information using command line or via Eclipse make target.

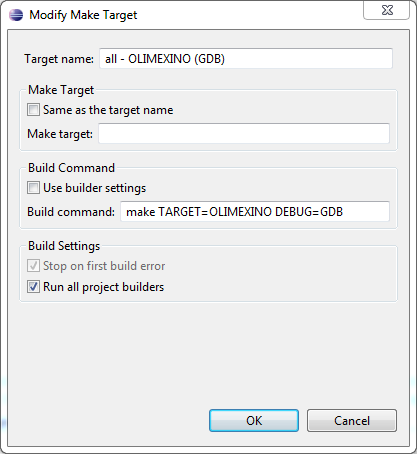

Example Eclipse make target

GDB and OpenOCD

start openocd

Create a new debug configuration in eclipse : connect to openocd use workspace default

you can control openocd with a telnet connection:

telnet localhost 4444

stop the board, flash the firmware, restart:

	reset halt
wait_halt
sleep 100
poll
flash probe 0
flash write_image erase /home/user/git/cleanflight/obj/cleanflight_NAZE.hex 0x08000000
sleep 200
soft_reset_halt
wait_halt
poll
reset halt

A this point you can launch the debug in Eclispe.

GDB and J Link

Here are some screenshots showing Hydra's configuration of Eclipse (Kepler)

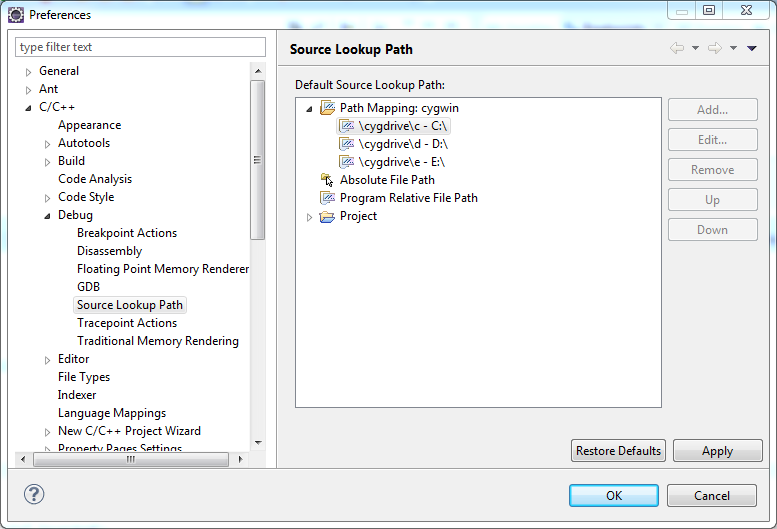

If you use cygwin to build the binaries then be sure to have configured your common Source Lookup Path, Path Mappings first, like this:

Create a new GDB Hardware Debugging launch configuration from the Run menu

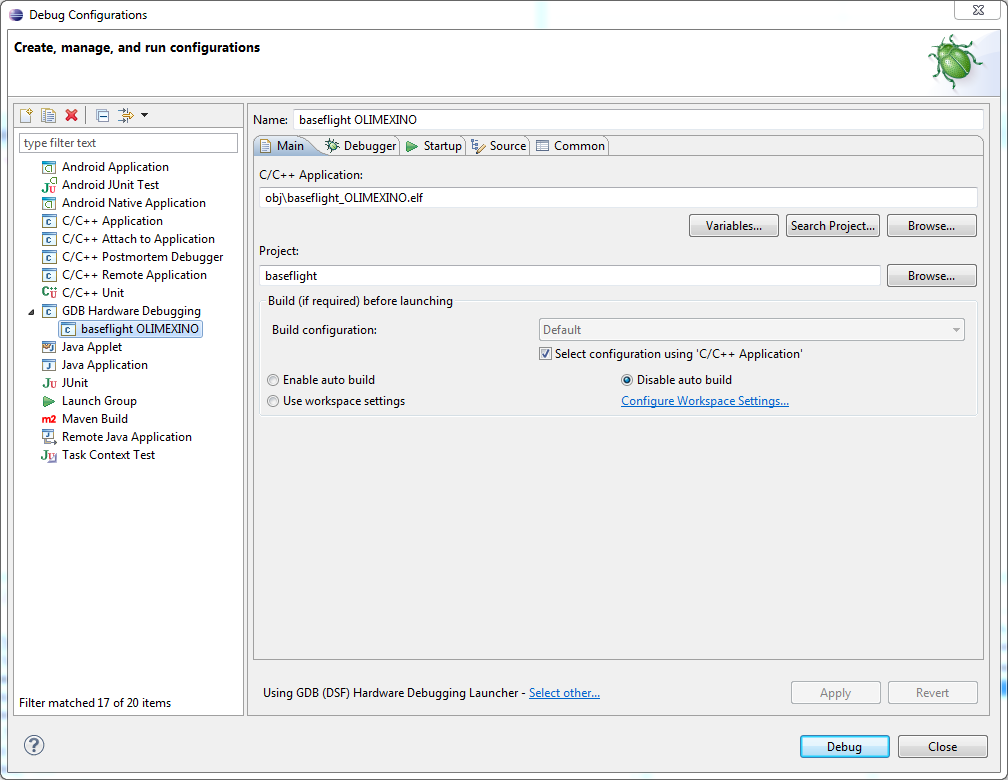

It's important to have build the executable compiled with GDB debugging information first. Select the appropriate .elf file (not hex file) - In these examples the target platform is an OLIMEXINO.

DISABLE auto-build

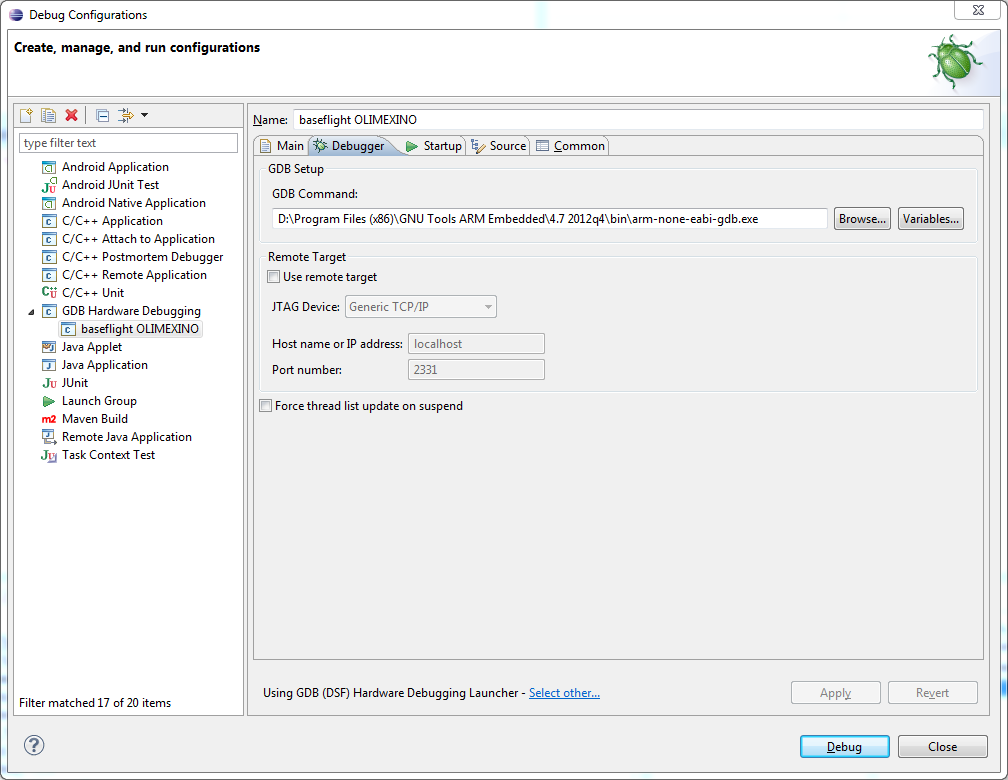

Choose the appropriate gdb executable - ideally from the same toolchain that you use to build the executable.

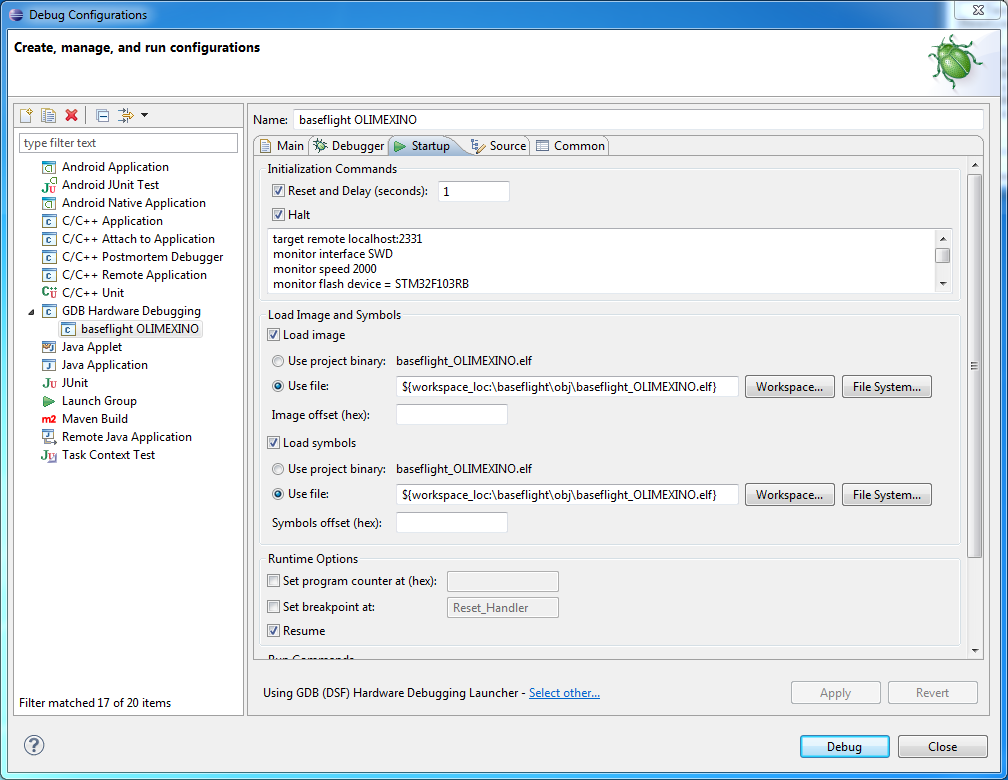

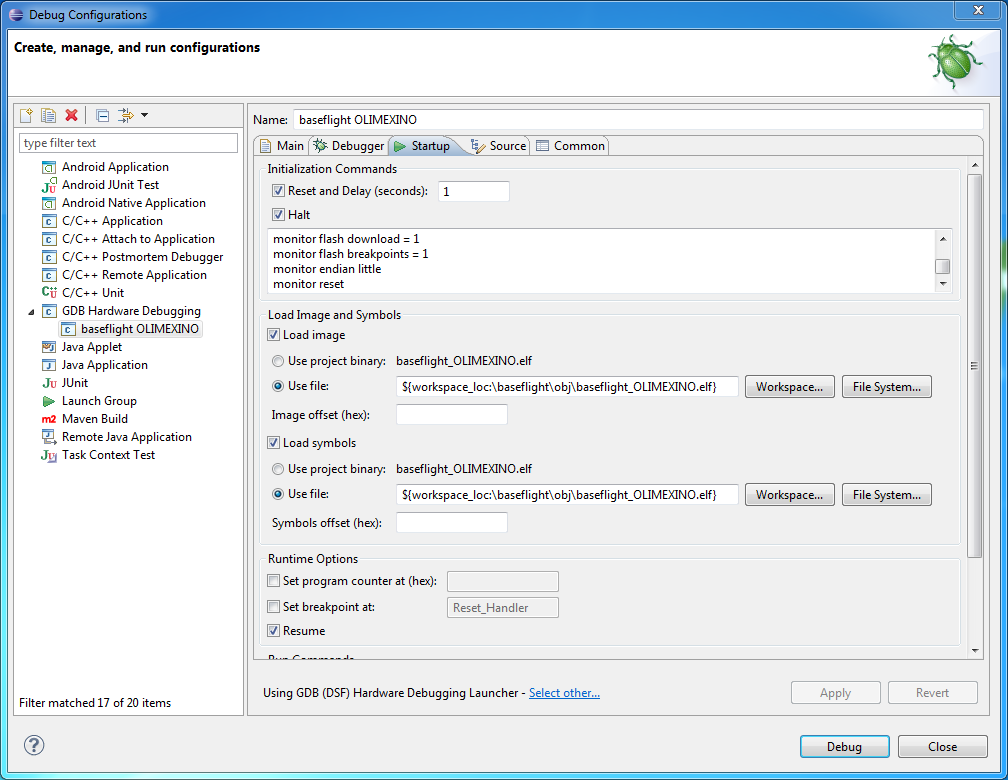

Configure Startup as follows

Initialization commands

target remote localhost:2331
monitor interface SWD
monitor speed 2000
monitor flash device = STM32F103RB
monitor flash download = 1
monitor flash breakpoints = 1
monitor endian little
monitor reset

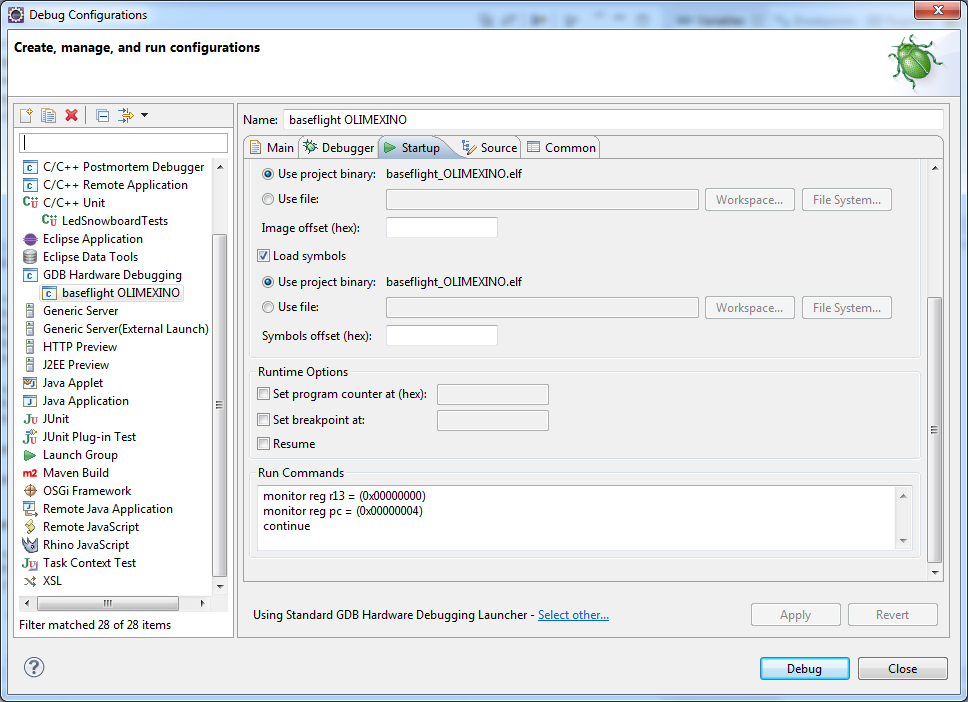

It may be useful to specify run commands too:

monitor reg r13 = (0x00000000)
monitor reg pc = (0x00000004)
continue

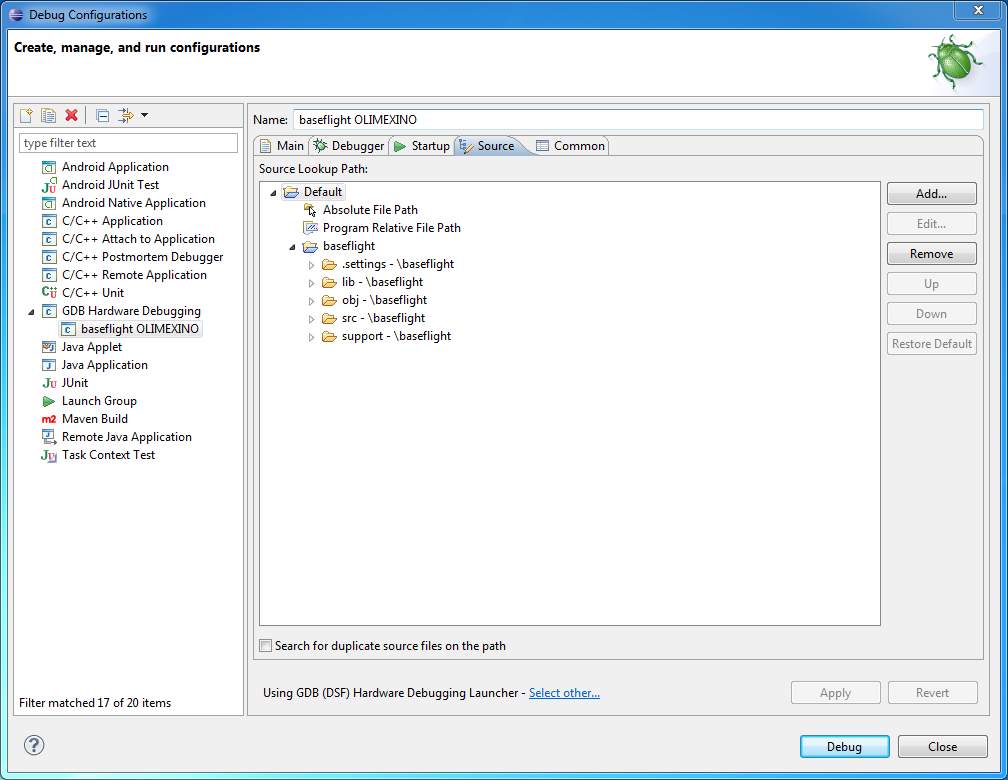

If you use cygwin an additional entry should be shown on the Source tab (not present in this screenshot)

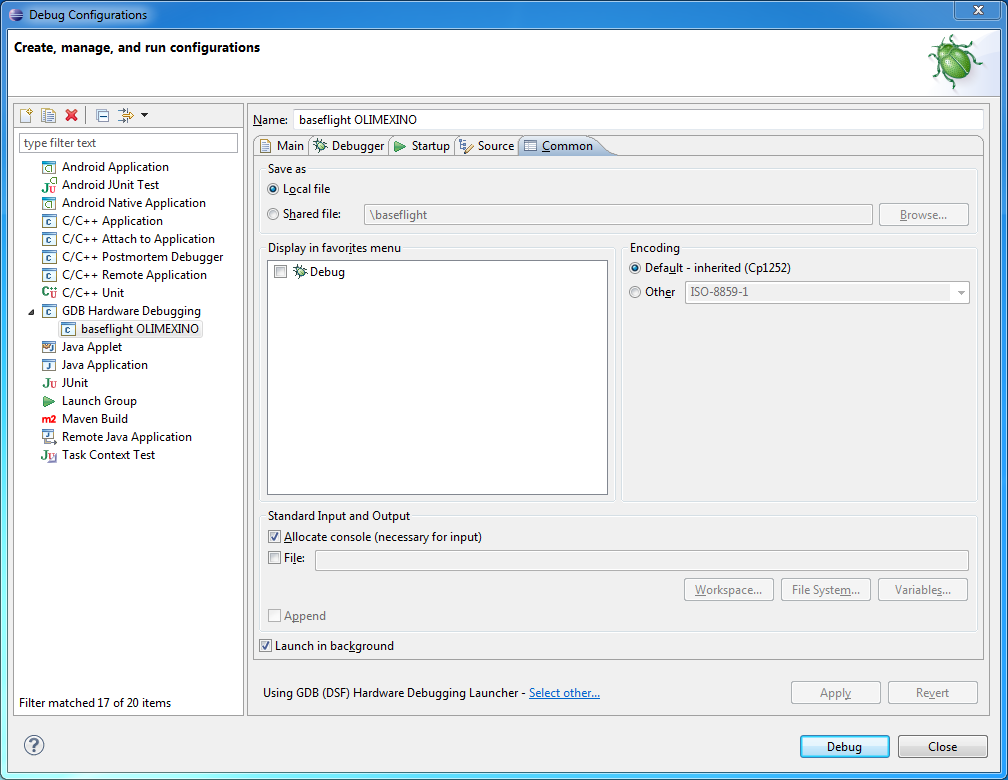

Nothing to change from the defaults on the Common tab

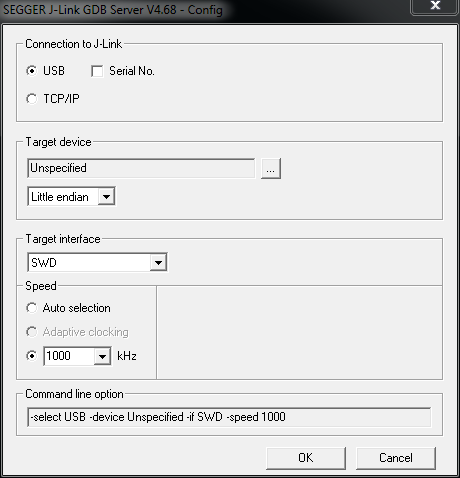

Start up the J-Link server in USB mode

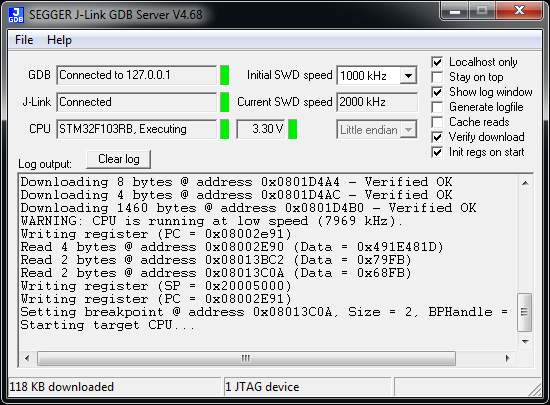

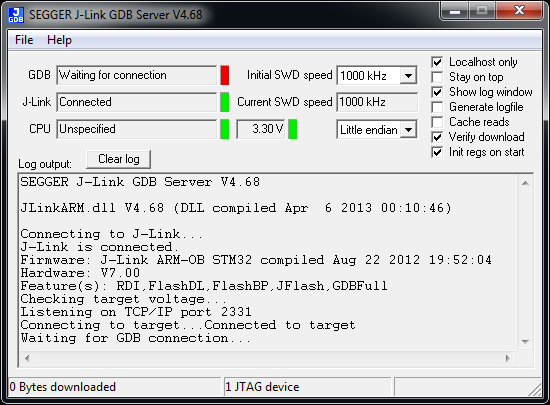

If it connects to your target device it should look like this

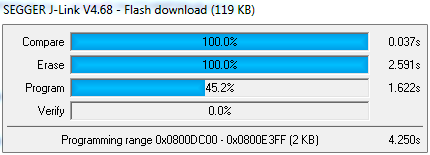

From Eclipse launch the application using the Run/Debug Configurations..., Eclipse should upload the compiled file to the target device which looks like this

When it's running the J-Link server should look like this.

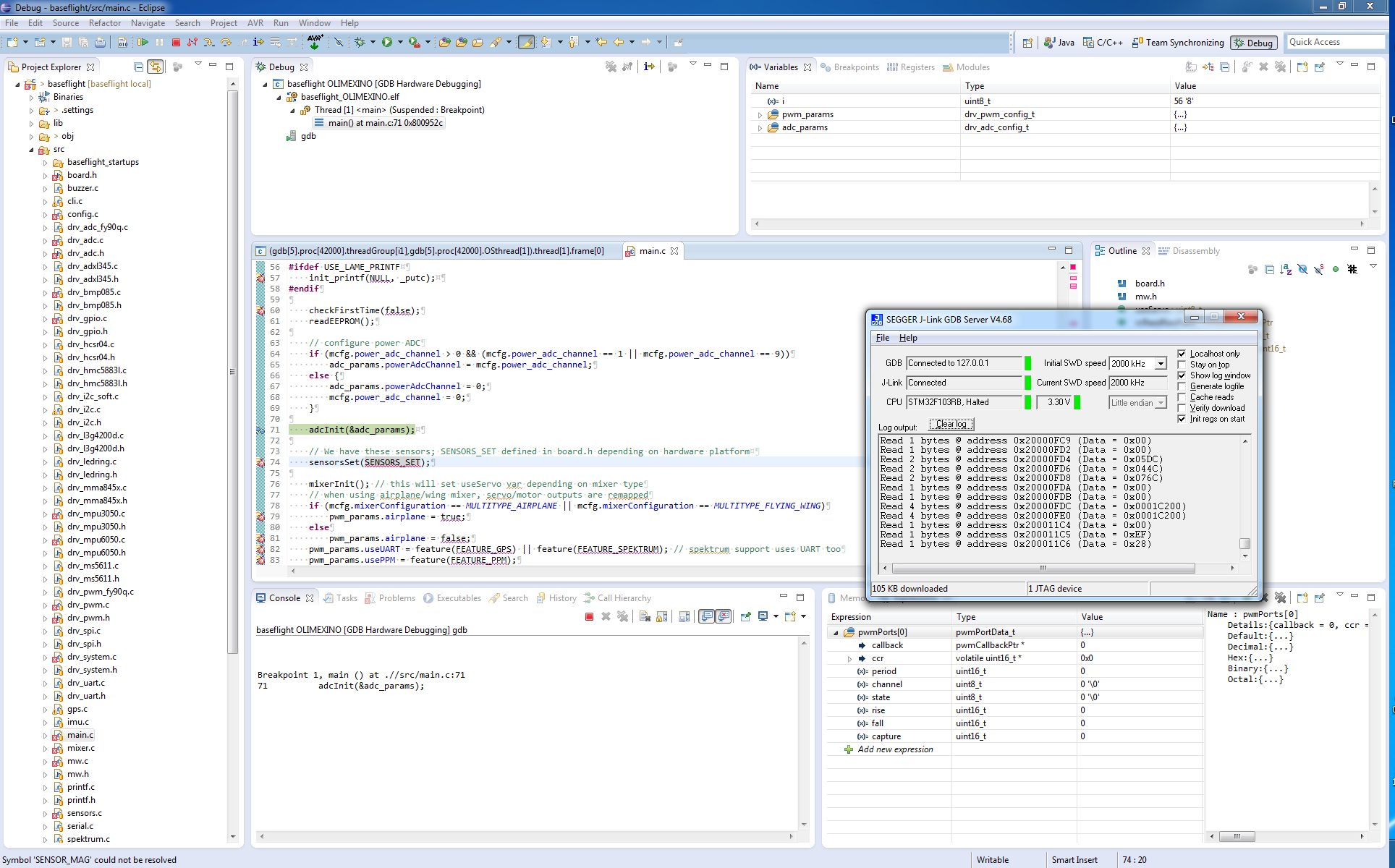

Then finally you can use Eclipse debug features to inspect variables, memory, stacktrace, set breakpoints, step over code, etc.

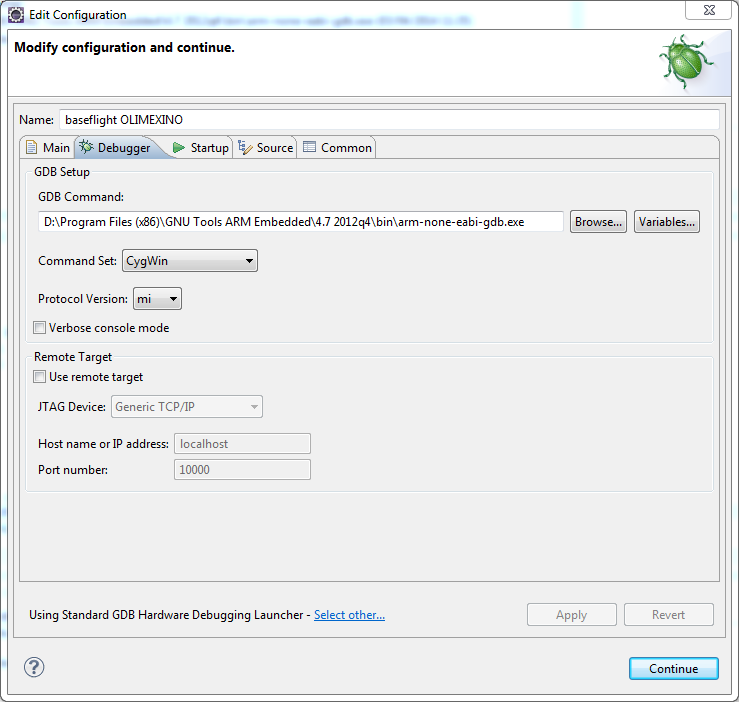

If Eclipse can't find your breakpoints and they are ignored then check your path mappings (if using cygwin) or use the other debugging launcher as follows. Note the 'Select other...' at the bottom of the configuration window.
