SKYSAKURA H743
- Specifications

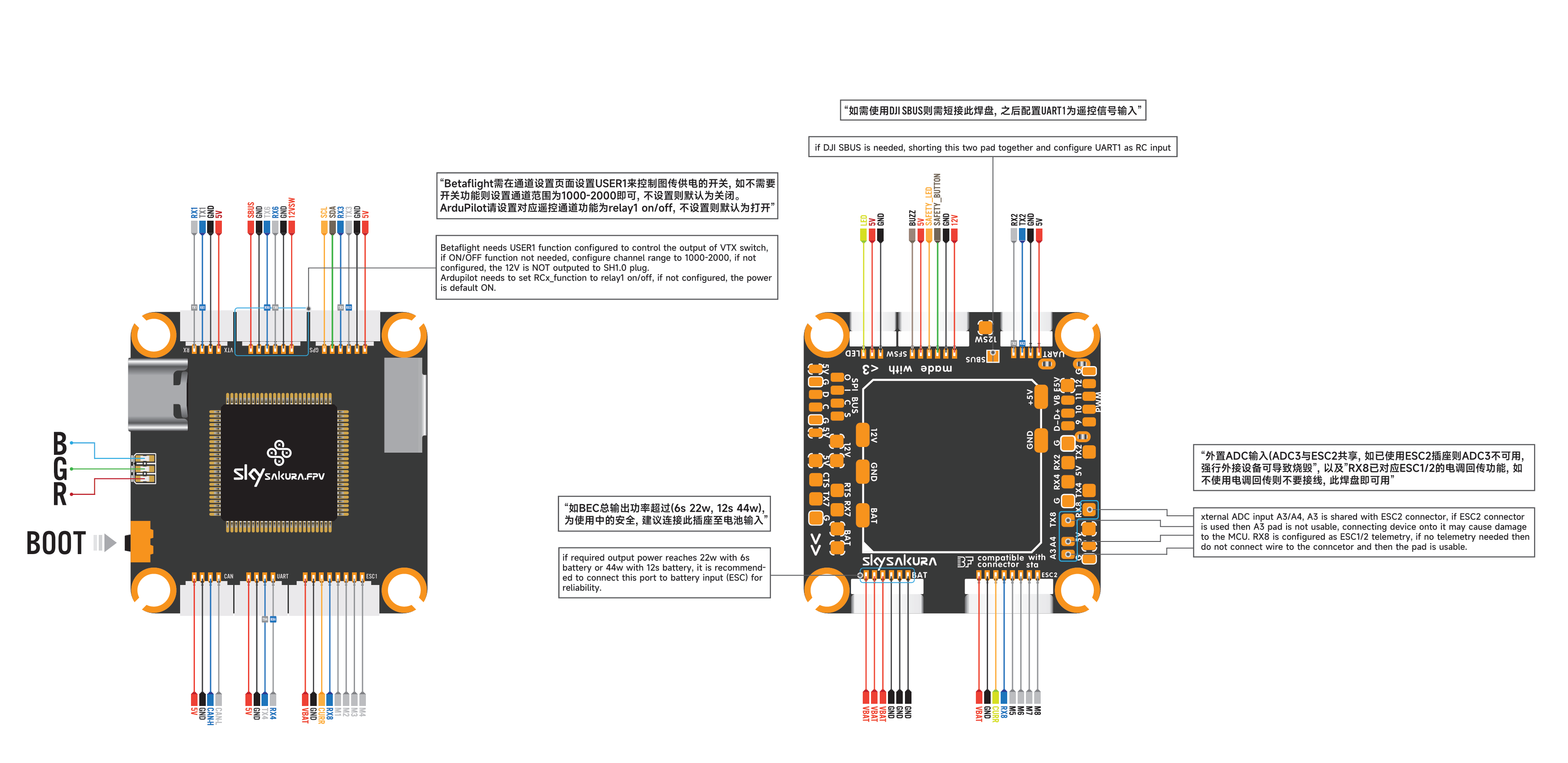

- Wiring Diagrams

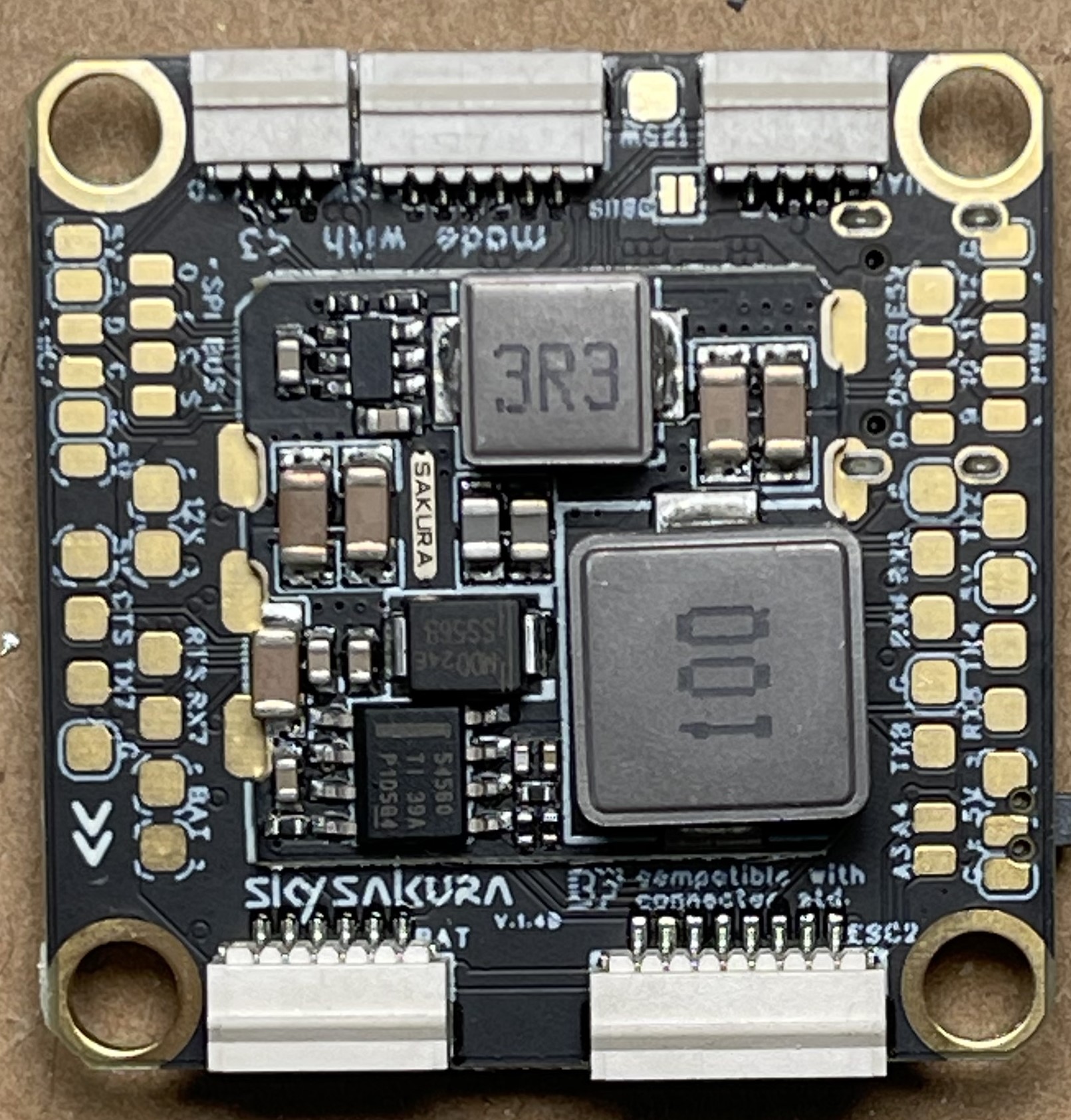

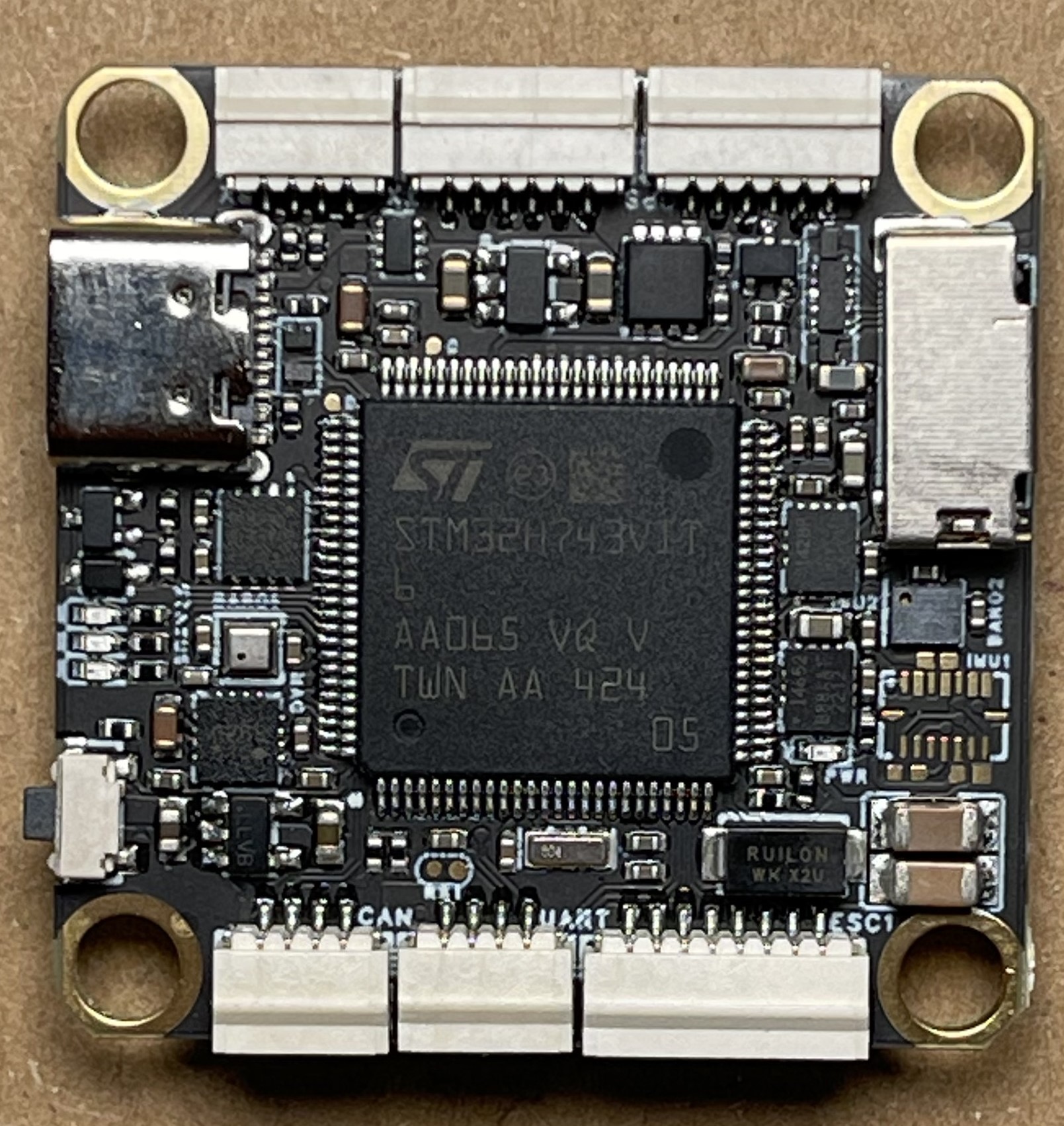

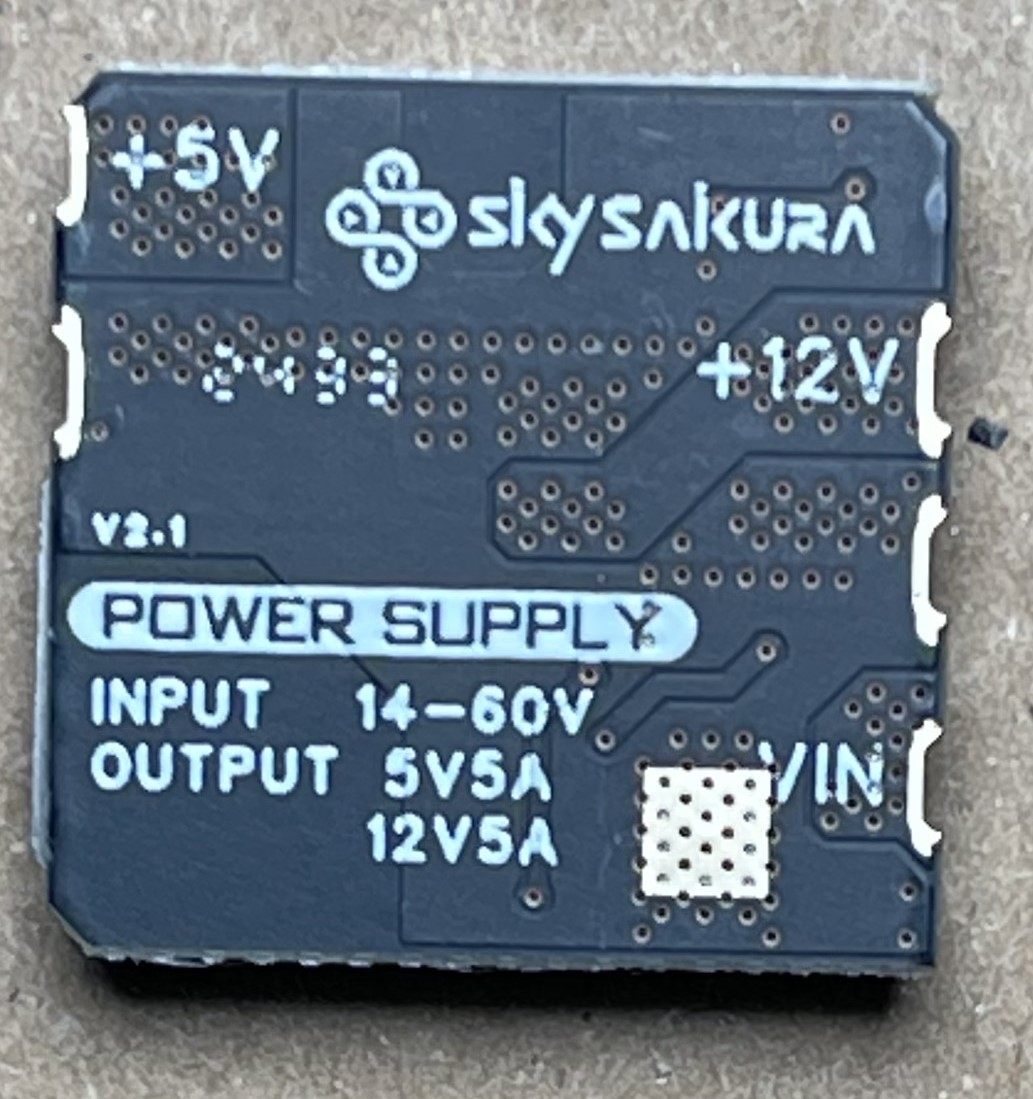

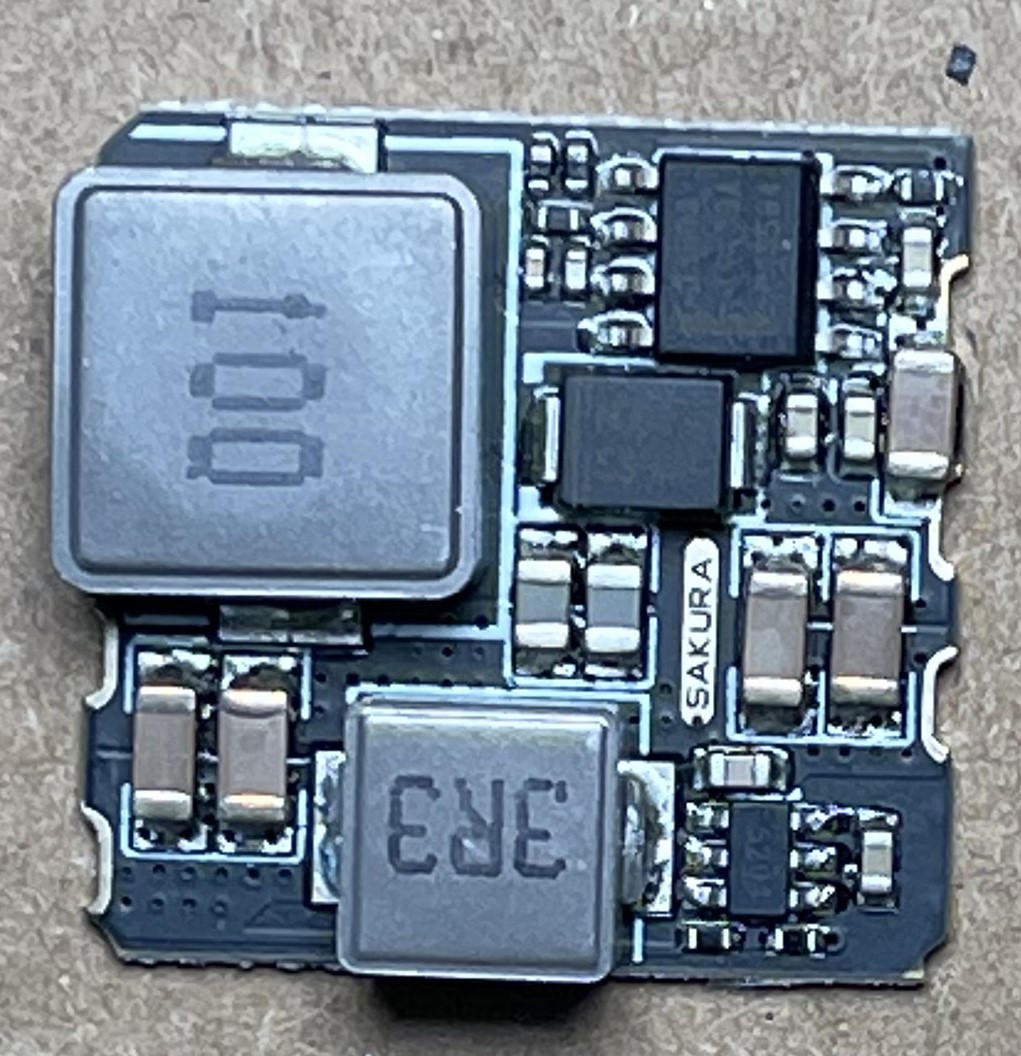

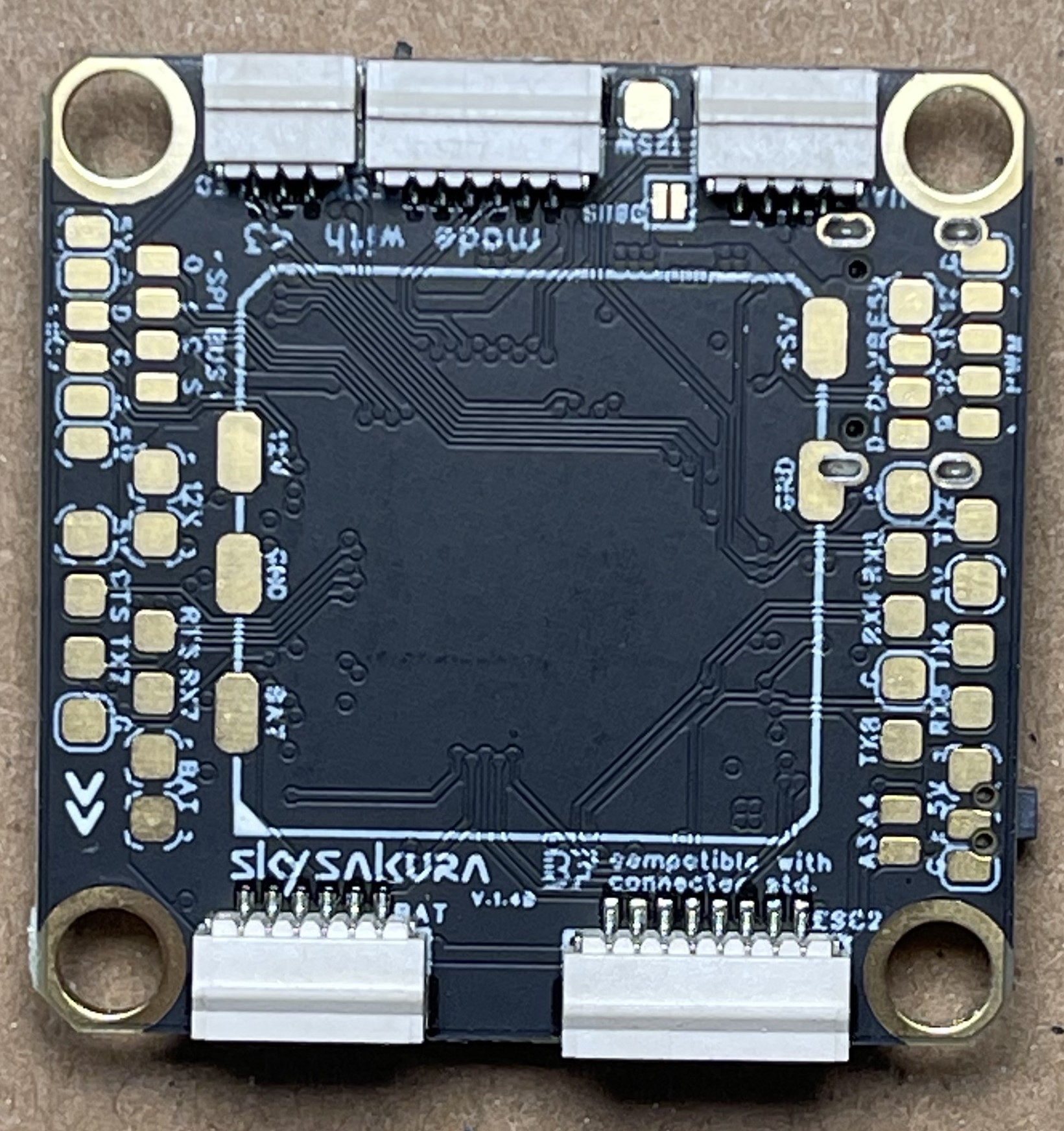

- Photos
- Notes
Target:
SAKURAH743
MCU:
STM32H743
IMU:
ICM42688P
OSD:
None
Baro:
DPS310
Blackbox:
SD Card
Measurements:
Size: 36x36mm
Mounting: 30.5x30.5mm
Weight: 15g
Other Features
- SD Card Slot: Yes
- Onboard Receiver: No
- Hardware Inverter: No
- Bluetooth: No
- WiFi: No
- Onboard RGB LED: 3
Input/Output
- USB Connector: USB C
- Motor Outputs: 12x
- UARTs: 7x
- I2C: Yes
- SWD: No
- SPI: Yes
- 3.3V Output: No
- 4.5V (VBUS) Output: Yes
- 5V Output: 5A
- 12V Output: 5A
- Current Sensor: Yes
- Analog RSSI Input: Yes
- LED Strip Output: Yes
- Buzzer Output: Yes

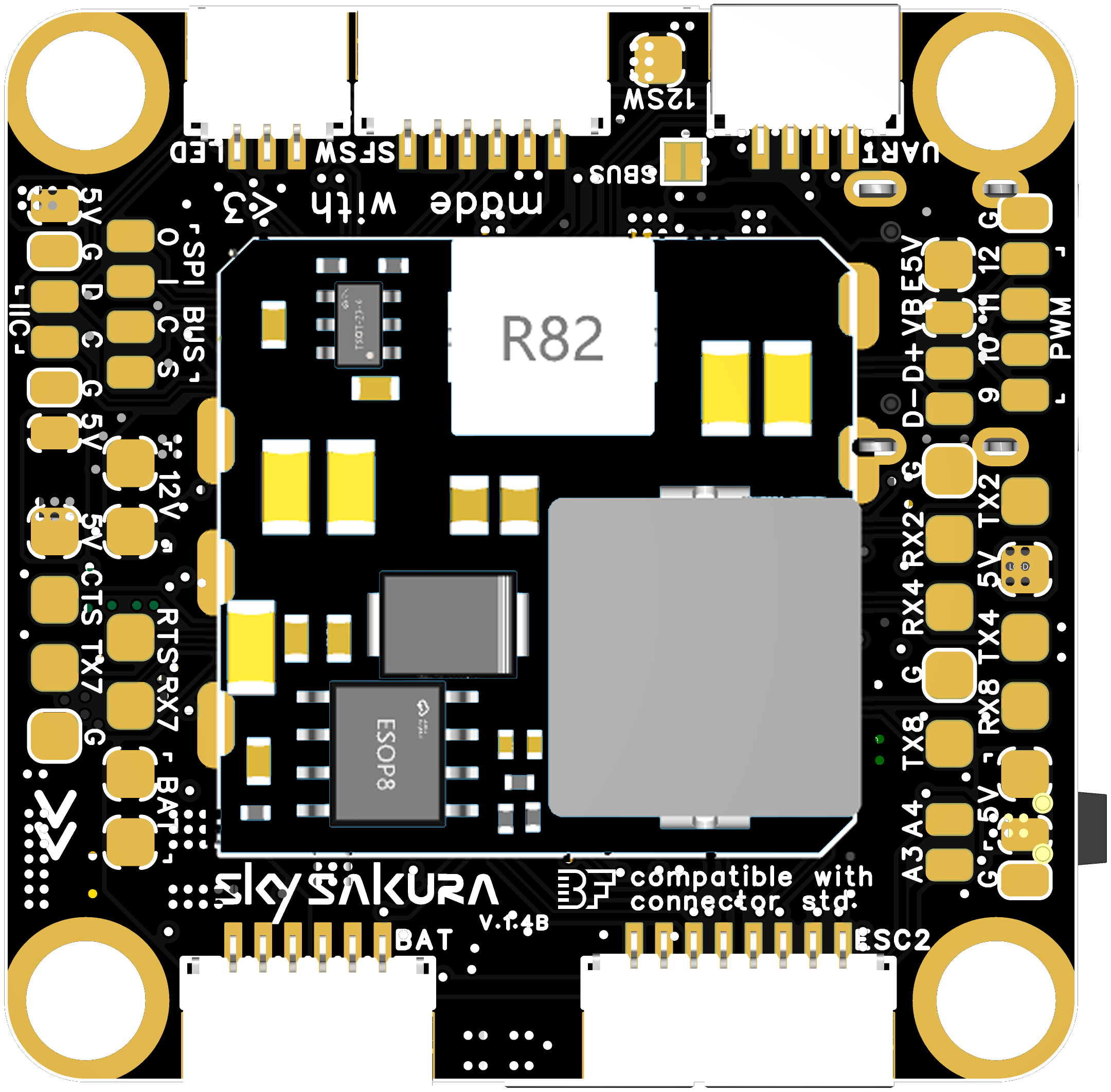

Pads
UARTs
Name | Label | Notes |
---|---|---|
UART 1 | TX1/RX1 | MSP |
UART 2 | TX2/RX2 | |
UART 3 | TX3/RX3 | GPS |
UART 4 | TX4/RX4 | RX |
UART 6 | TX6/RX6 | DISPLAYPORT |
UART 7 | TX7/RX7 | |
UART 8 | TX8/RX8 | ESC |
Power
Name | Label | Count | Notes |
---|---|---|---|
VBAT5V | 5V | 3x | Only available when battery power used, 1 in LED connector, 2 on pads |
5V | 5V | 12x | |
12V | 12V | 5x | 2 regular output on pads, 1 switched output on pad, 1 switched output on pad, 1 regular output on SFSW connector |
Battery Voltage | VBAT | 2x |
ESC Signal
Name | Label | Notes |
---|---|---|
Current | CURR | |
Signal 1 | M1 | |
Signal 2 | M2 | |
Signal 3 | M3 | |
Signal 4 | M4 | |
Signal 5 | M5 | |
Signal 6 | M6 | |
Signal 7 | M7 | |
Signal 8 | M8 | |
Signal 9 | PWM9 | |
Signal 10 | PWM10 | |
Signal 11 | PWM11 | |
Signal 12 | PWM12 |

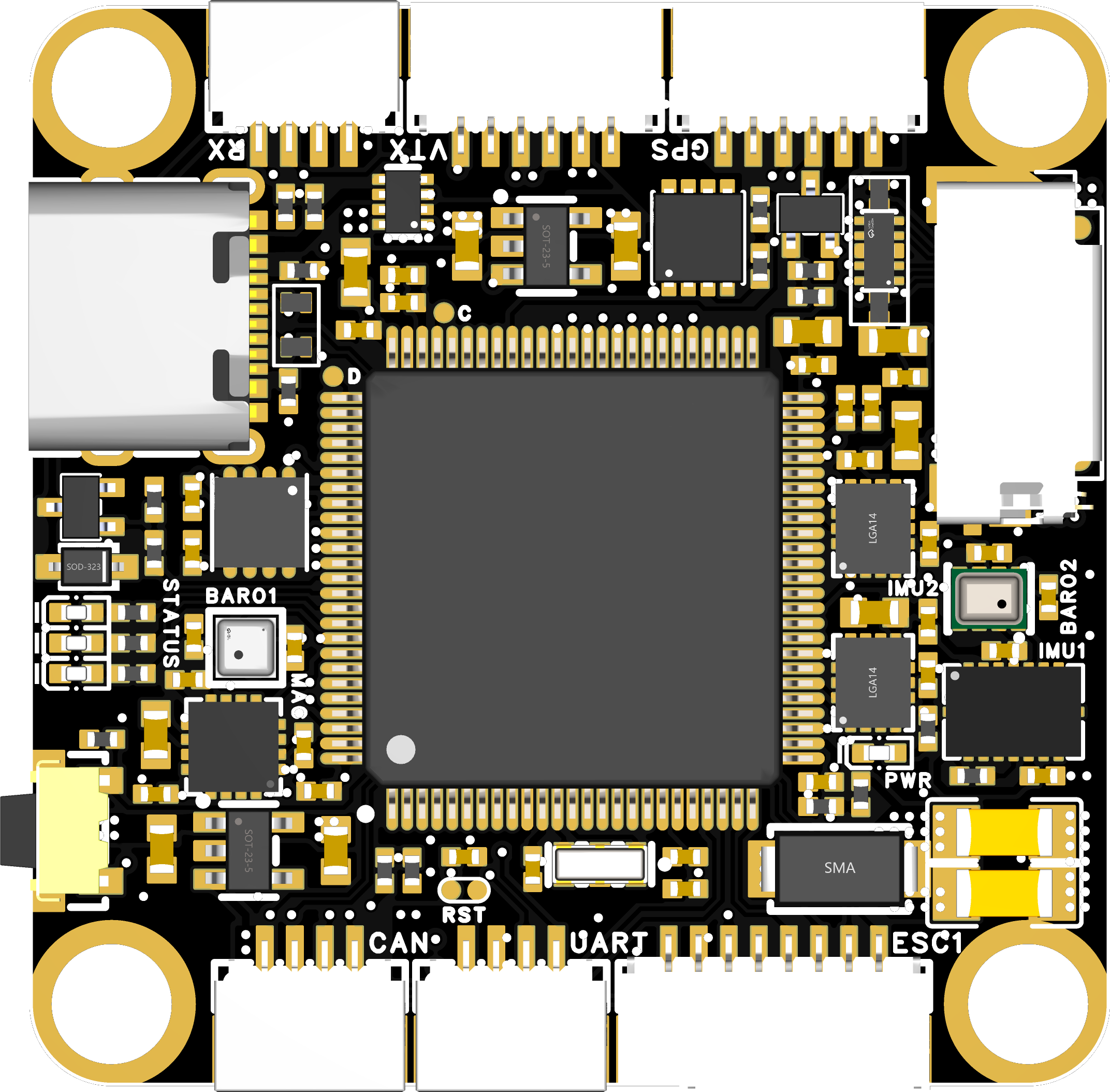

Connectors
ESC 1-4
Pin | Name | Label |
---|---|---|
1 | Battery Voltage | VBAT |
2 | Ground | GND |
3 | Current | CURR |
4 | Telemetry | RX8 |
5 | Signal 1 | M1 |
6 | Signal 2 | M2 |
7 | Signal 3 | M3 |
8 | Signal 4 | M4 |
ESC 5-8
Pin | Name | Label |
---|---|---|
1 | Battery Voltage | VBAT |
2 | Ground | GND |
3 | Current | CURR |
4 | Telemetry | RX8 |
5 | Signal 5 | M5 |
6 | Signal 6 | M6 |
7 | Signal 7 | M7 |
8 | Signal 8 | M8 |
UART
Pin | Name | Label |
---|---|---|
1 | 5V | 5V |
2 | Ground | GND |
3 | TX | TX |
4 | RX | RX |
GPS
Pin | Name | Label |
---|---|---|
1 | 5V | 5V |
2 | Ground | GND |
3 | TX6 | TX6 |
4 | RX6 | RX6 |
5 | SDA | SDA |
6 | SCL | SCL |
SFSW
Pin | Name | Label |
---|---|---|
1 | 12V | 12V |
2 | Ground | GND |
3 | NOT USED IN BF | BUT |
4 | NOT USED IN BF | LED |
5 | 5V | 5V |
6 | BUZZ- | BUZZ- |
BATT
Pin | Name | Label |
---|---|---|
1 | Battery Voltage | VBAT |
2 | Battery Voltage | VBAT |
3 | Battery Voltage | VBAT |
4 | Ground | GND |
5 | Ground | GND |
6 | Ground | GND |
CAN
Pin | Name | Label |
---|---|---|
1 | 5V | 5V |
2 | GND | GND |
3 | NOT USED IN BF | CAN-H |
4 | NOT USED IN BF | CAN-L |
info
DJI SBUS support
SBUS is supported on VTX connector for DJI air unit. Bridge SBUS pad then use UART4 as serial receiver.
caution
12V and 5V bec maximum allowed output is 60W total. Operation above 22w(6s) or 44w(12s) requires BATT connection.
